7630泄漏電流測試儀 產品介紹具有多項專利及創新功能，兼具大功率負載量測能力，適合所有接觸電流的測試應用；超大型 320 x 240 Graphic LCD ，可同時顯示量測電壓/接觸電流及測試時間；完整的自動化接口，如網絡卡、USB & RS-232、IEEE-488 (GPIB) 及其他接口，可執行自動化測試，亦可搭配華儀安規測試器，組成測試系統
咨詢電話：400-838-1718

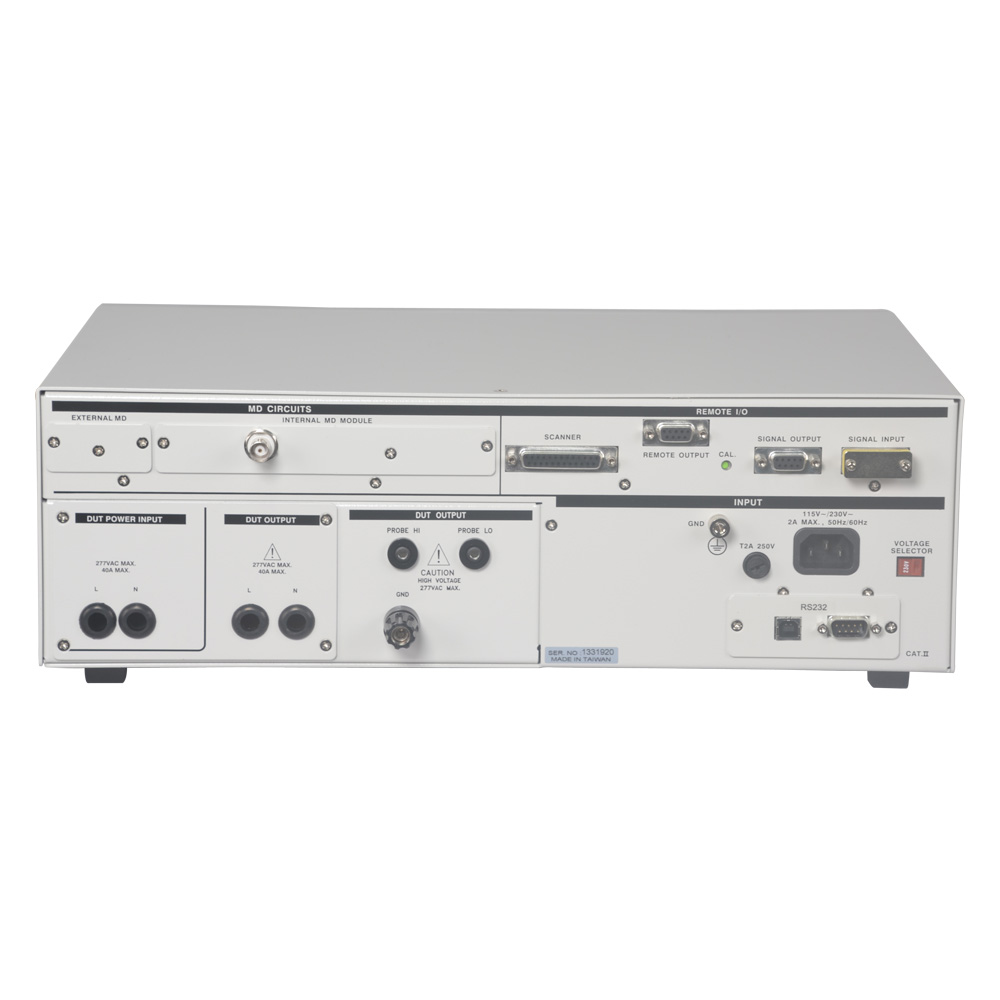

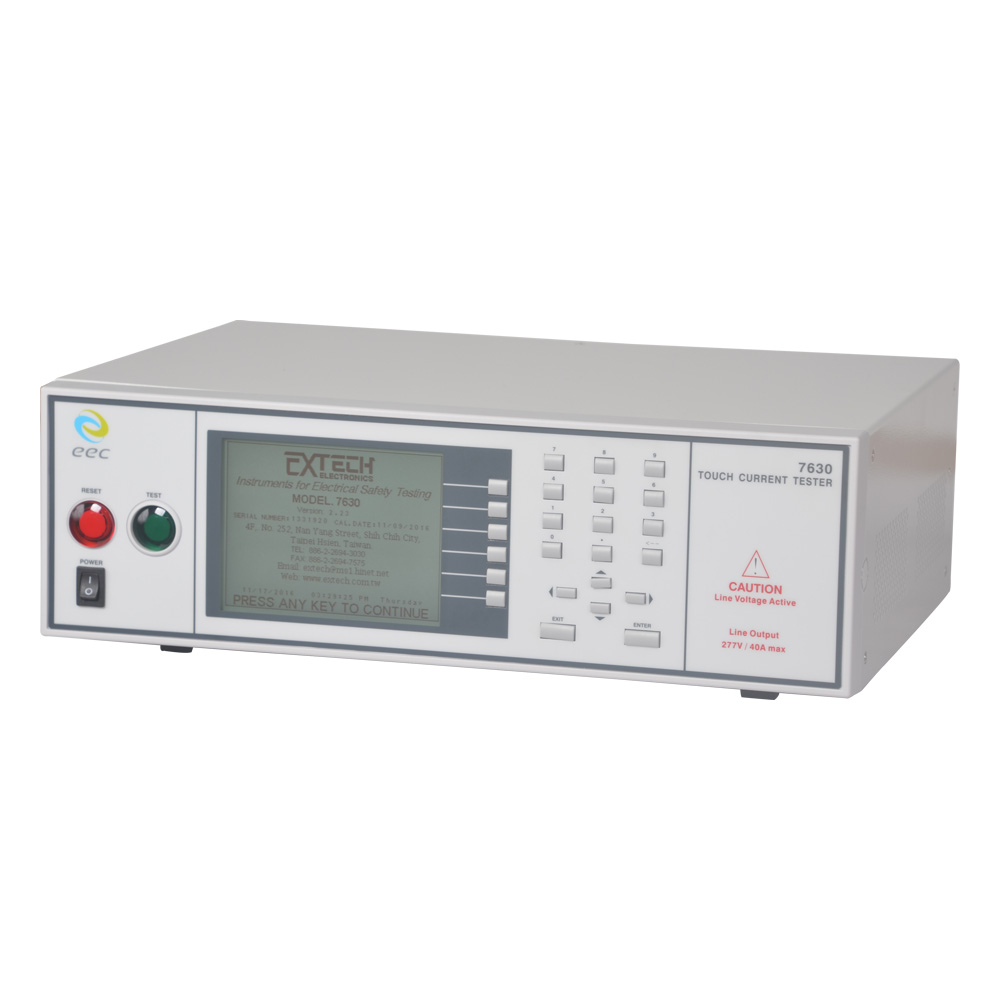

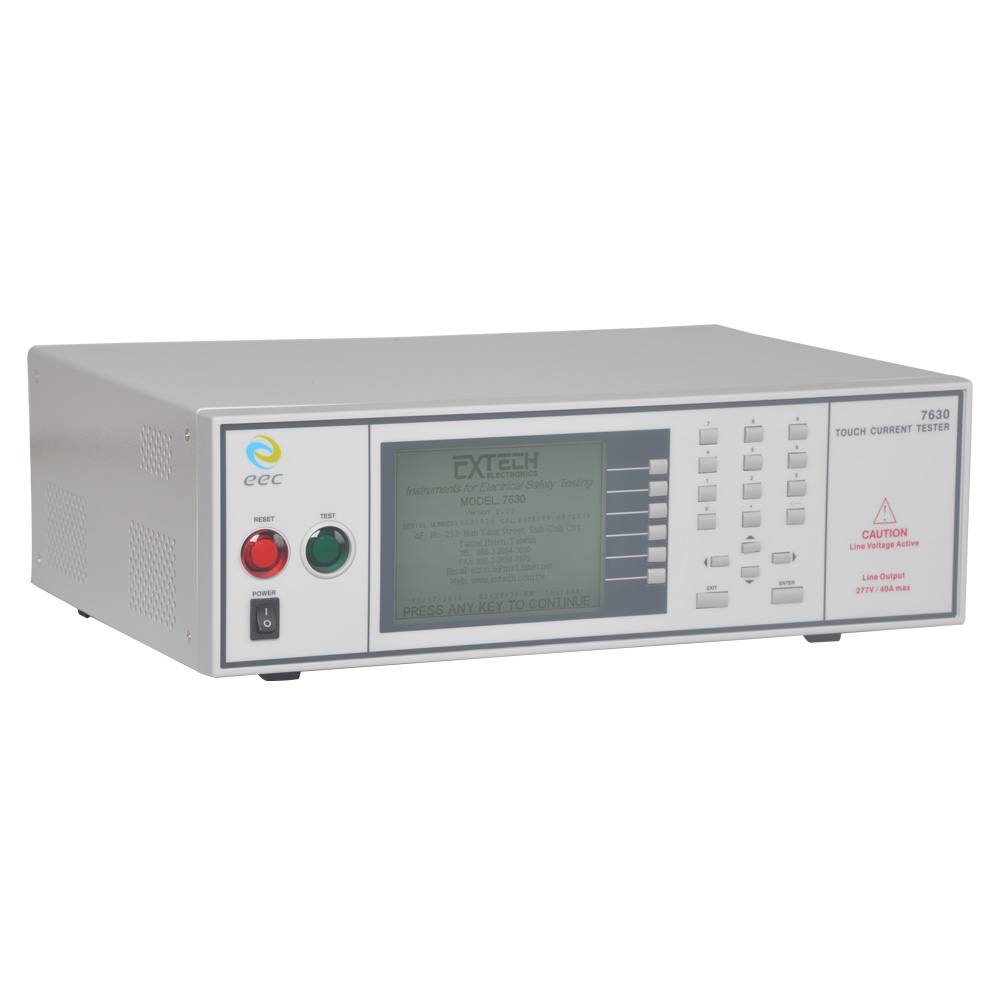

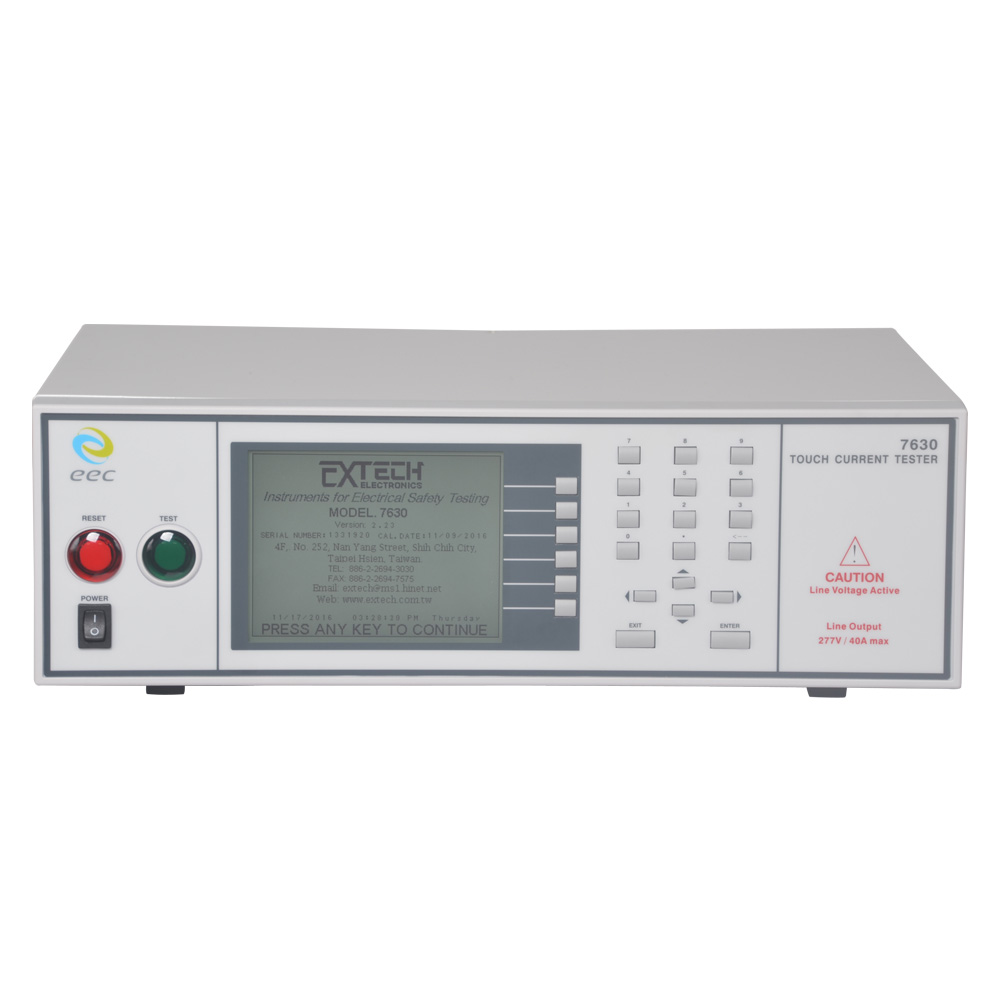

7630泄漏電流測試儀 產品介紹

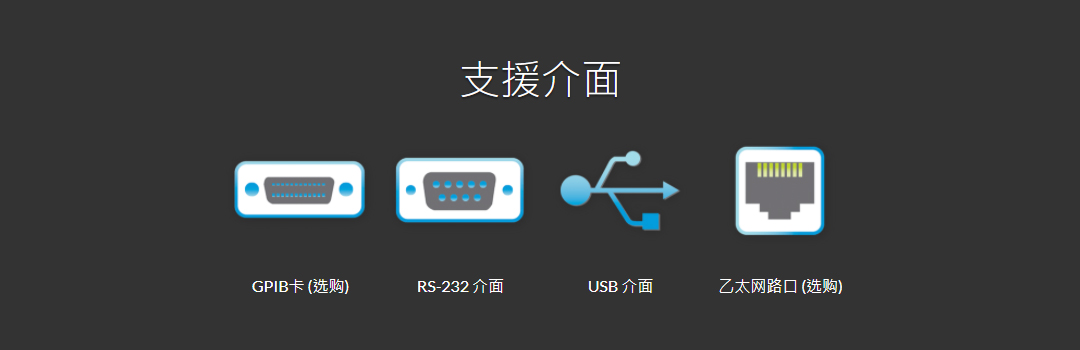

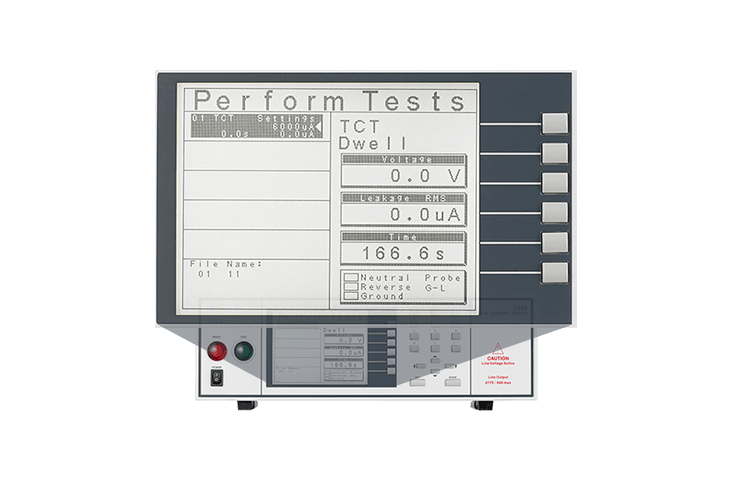

具有多項專利及創新功能，兼具大功率負載量測能力，適合所有接觸電流的測試應用；超大型 320 x 240 Graphic LCD ，可同時顯示量測電壓/接觸電流及測試時間；完整的自動化接口，如網絡卡、USB & RS-232、IEEE-488 (GPIB) 及其他接口，可執行自動化測試，亦可搭配華儀安規測試器，組成測試系統，提升測試效率。
7630泄漏電流測試儀產品特點
量測接觸電流時，亦可顯示人體仿真阻抗線路(MD)兩端的電壓 ，滿足接觸電流IEC 60990 標準要求
接觸電流可量測 AC/DC/AC+DC ，滿足醫療設備IEC 60601 標準要求
量測帶寬 DC - 1MHz，符合 IEC60990 接觸電流測試規范
可靈活選擇MD漏電流量測點(如: IEC60065 U1&U2)，符合安規標準要求
內建 7 組人體模擬阻抗(MD)與1組擴充空間，滿足多種安規標準要求
可搭配華儀安規測試器組成安規六合一(ACW/DCW/IR/GB/RUN/LLT) 測試系統，縮短測試時間
MD 具有BNC量測端子，可外接示波器或電壓表讀取電壓值，方便對MD進行校準
開機智能檢測功能，自動確認儀器輸出正常，確保測試的可靠度
校正及預警時間設定功能，提醒用戶定期校正，確保測試質量
測試結果可儲存過程中最大漏電流 (Imax)，滿足客戶對質量的要求
可選配最大峰值 75mApeak / 有效值 35mArms 量測，滿足安規機構測試驗證需求
提供7組人體模擬線路（MD）及8組失效模式分析（Fault Condition），模擬真實世界的各種可能觸電危險狀況。
負載容量可高達40A有效值，使其適用于大電流工業產品。
可同時顯示電流測量值或MD兩端電壓值，清楚呈現測試結果。

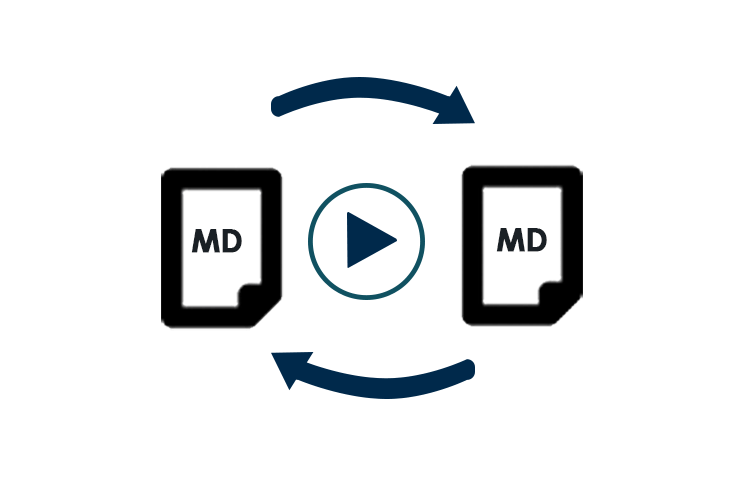

MD可抽換式設計，讓使用者易于替換不同選擇外，更滿足快速的的校驗、維修與替換。
Specification : | ||
INPUT | ||
Voltage | 115/230 VAC ± 15% | |
Frequency | 50/60 Hz ± 5% | |
Fuse | 2A Slow-Blo 250V AC | |
Line condition | ||
Power Switch | Reverse polarity switch for normal condition (on / off / auto setting) | |
Neutral Switch | Neutral switch on/off selection for single fault condition | |
Ground Switch | Ground switch on/off selection for class I single fault condition | |
Probe Setting | ||
Surface to Surface (PH- PL) | ||
Surface to Line(PH - L) | ||
Ground to Line (G - L) | ||
Ground to Neutral (G - N) | ||
Auto Function (G - N & G - L) | ||
SETTING | ||
Touch Current High Limit (RMS) | Range: | 0.0uA~ 999.9uA/ 1000uA~5999uA/ 6.00mA~20.00mA |
Resolution: | 0.1uA/1uA/0.01mA | |
Touch Current Low Limit (RMS) | Range: | 0.0-999.9 uA |
Resolution: | 0.1uA | |
Touch Current High Limit (Peak) | Range: | 0.0uA - 999.9uA/ 1000uA - 9999uA/ 10.0mA - 30.0mA |
Resolution: | 0.1uA/1uA/0.1mA | |
Touch Current Low Limit (Peak) | Range: | 0.0-999.9 uA |
Resolution: | 0.1uA | |
DISPLAY | ||
Touch Current Display (RMS) | Range 1 | 0.0uA~ 999.9uA, frequency DC - 1MHz |
Resolution | 0.1uA | |
Accuracy | DC : ±2% of reading + 3counts | |
Range 2 | 1000uA~8500uA, frequency DC - 1MHz | |
Resolution | 1uA | |
Accuracy | DC : ±2% of reading + 3counts | |
Range 3 | 8.00mA~20.00mA, frequency DC - 1MHz | |
Resolution | 0.01mA | |
Accuracy | DC : ±2% of reading + 3counts | |
Touch Current Display (Peak) | Range 1 | 0.0uA~ 999.9uA, frequency DC - 1MHz |
Resolution | 0.1uA | |
Accuracy | DC : ±2% of reading +2uA | |
Range 2 | 1000uA ~ 8500uA, frequency DC - 1MHz | |
Resolution | 1uA | |
Accuracy | DC : ±2% of reading +2counts | |
Range 3 | 8.0mA ~ 30.0mA, frequency DC - 100KHz | |
Resolution | 0.01mA | |
Accuracy | DC : ±2% of reading +2counts | |
Measuring Device Module | ||
MD1 | IEC60990 Fig4 U2, IEC 60950-1, IEC60335-1, IEC60598-1, IEC60065, IEC61010 | |
IEC60990 Fig4 U1, IEC60065 | ||
MD2 | IEC60990 Fig5 U3, IEC60598-1 | |
IEC60990 Fig5 U1 | ||
MD3 | IEC 60601-1 | |
MD4 | UL544NP, UL484 , UL923, UL471, UL867, UL697 | |
MD5 | UL544P | |
MD6 | UL1563 | |
MD7 | IEC60950, IEC61010-1 FigA.2 (2K ohm) for RUN Test MD Circuit. | |
External MD | Basic measuring element 1k ohm | |
MD Voltage Limit | 70Vdc | |
Leakage Current Offset | Range: | 0 - 999.9uA |
Resolution: | 0.1uA | |
DUT POWER | ||
AC Voltage | 0.0-277.0V | |
AC Current | 40Arms max continuous | |
Over Current Protection | 50Arms, Response Time < 3 sec / 250Apeak Response Time<10u sec | |
AC Voltage High/Low Limit | Range: | 0.0-277.0V |
Resolution: | 0.1V/step | |
AC Voltage Display | Range: | 0.0 - 277.0 V |
Resolution: | 0.1 volt / step | |
Accuracy: | ±(1.5% of reading + 2 counts) , 30.0 - 277.0VAC | |
Delay time setting | Range: | 0.2 !V 999.9 seconds |
Resolution: | 0.1 second | |
Timer display | Range: | 0.0 !V 999.9 seconds |
Resolution: | 0.1 second | |
Accuracy: | ± (0.1% of reading + 0.05 seconds) | |
GENERAL | ||
PLC Remote Control | Input - Test, Reset, Interlock & Recall File 1 through10 | |
Output - Pass, Fail, Test-in-Process, Start-Out, Reset-Out | ||
Scanner Control | It is applied to control Matrix Scanner (Model 7006) | |
Memory | 50 memories , 30steps per each memory . Max. Result Display 900 data (30 memories x 30 steps) | |
Auto Reverse Function | AUTO Reverse ON / OFF parameter setting selection | |
